LittleGiant
Little Giant 5-ASP-LL 115-Volt, 1/6 HP, 1500 GPH Automatic Aluminum Utility Pump with Low-Level Piggy-back Diaphragm Switch, 18-Ft. Cord, Blue, 505717
Little Giant 5-ASP-LL 115-Volt, 1/6 HP, 1500 GPH Automatic Aluminum Utility Pump with Low-Level Piggy-back Diaphragm Switch, 18-Ft. Cord, Blue, 505717
Regular price
$387.36 USD
Regular price
Sale price
$387.36 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
About This

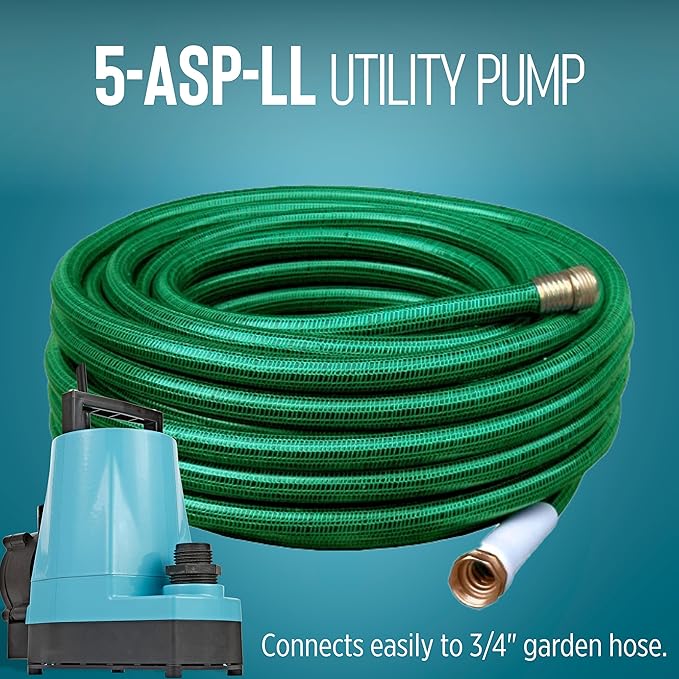

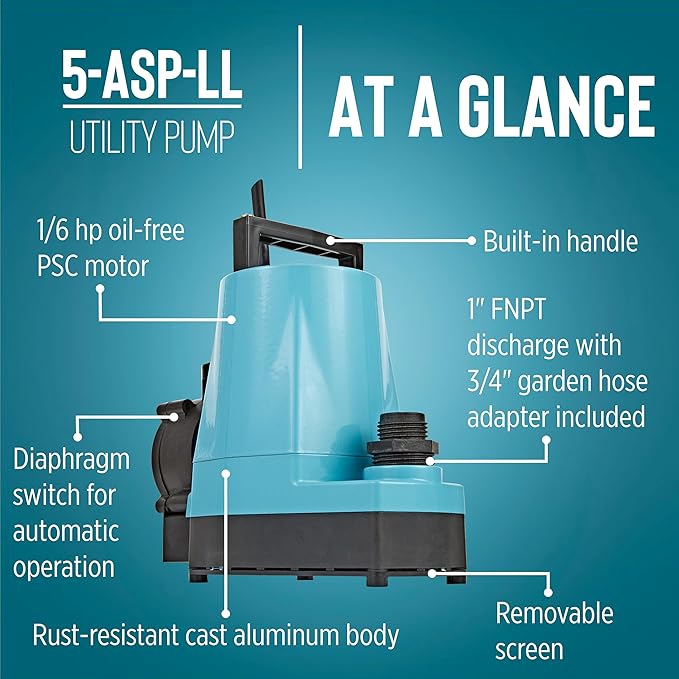

- AUTOMATIC UTILITY PUMP: For submersible use only; comes with a piggyback diaphragm switch with 18' cord; 1-inch FNPT discharge and 3/4-inch garden hose adapter

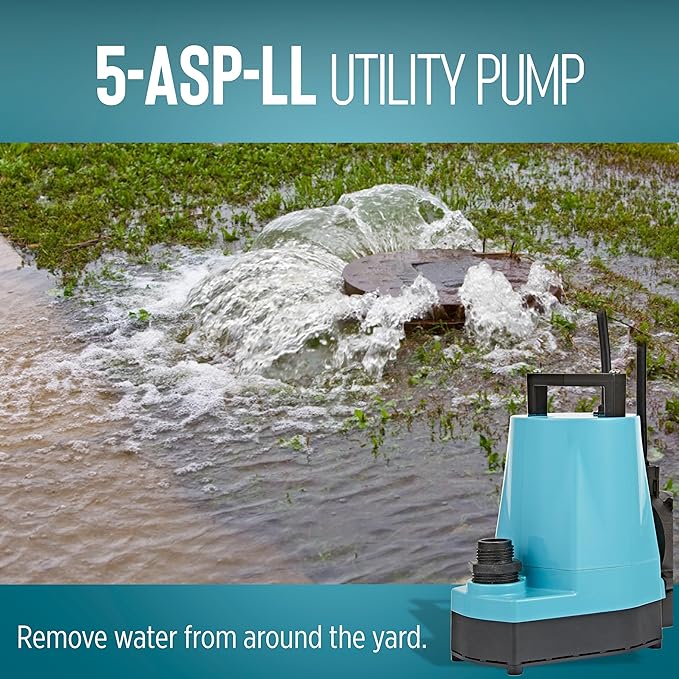

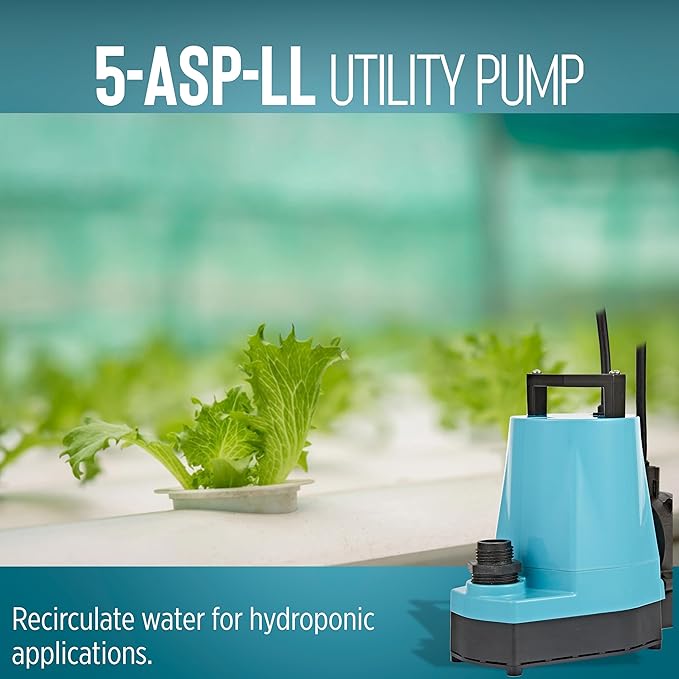

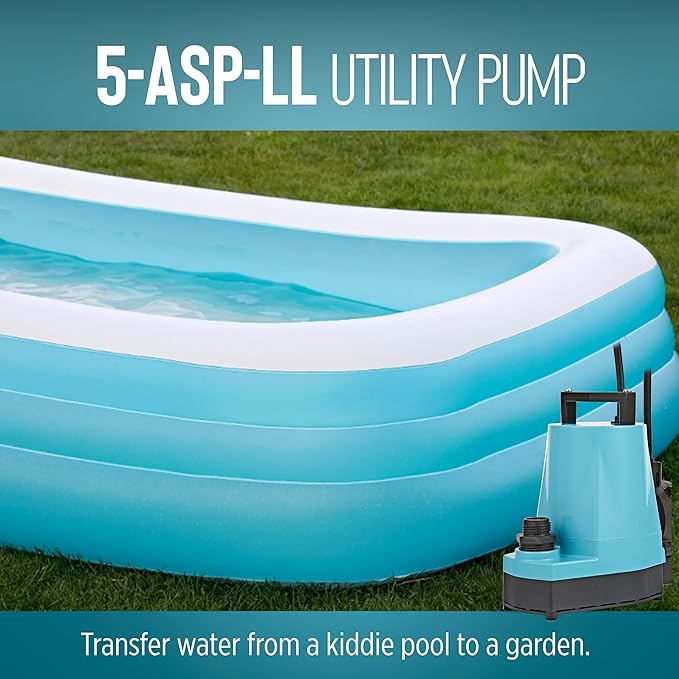

- SUBMERSIBLE PUMP: Typical applications for the 5-ASP-LL pump include commercial, industrial, and home uses where liquid must be transferred or recirculated; this pump is for submersible use only

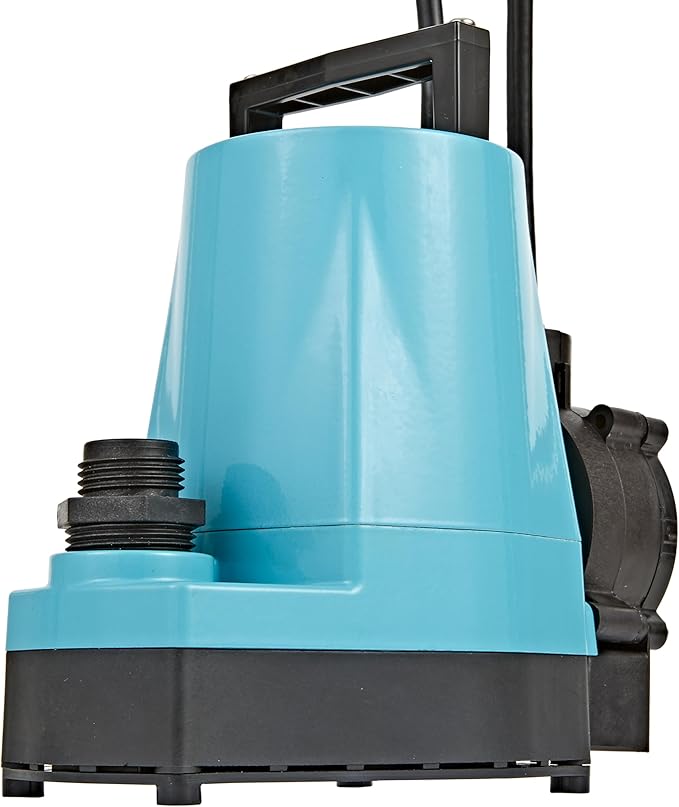

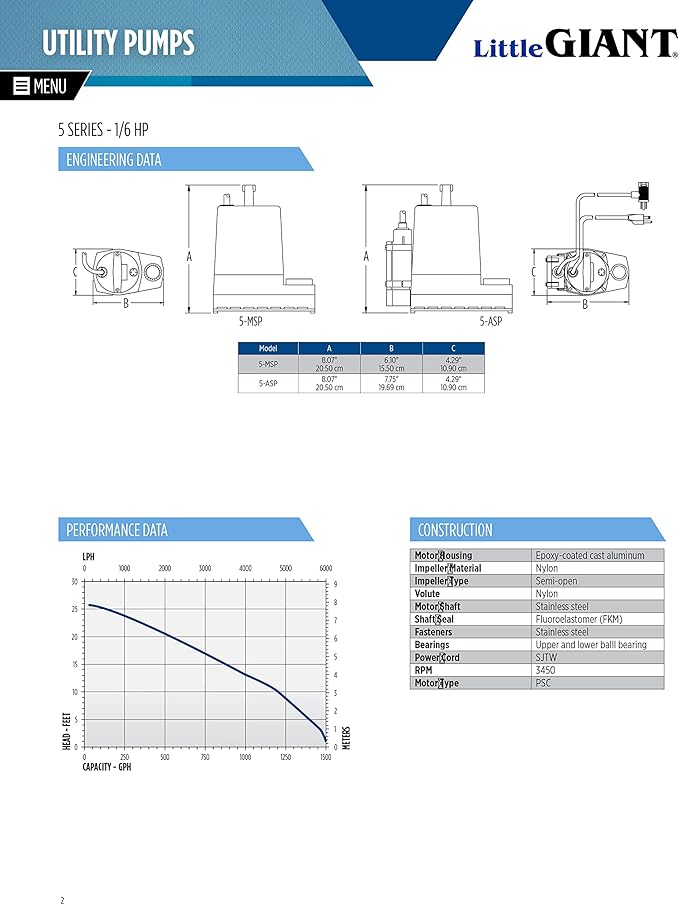

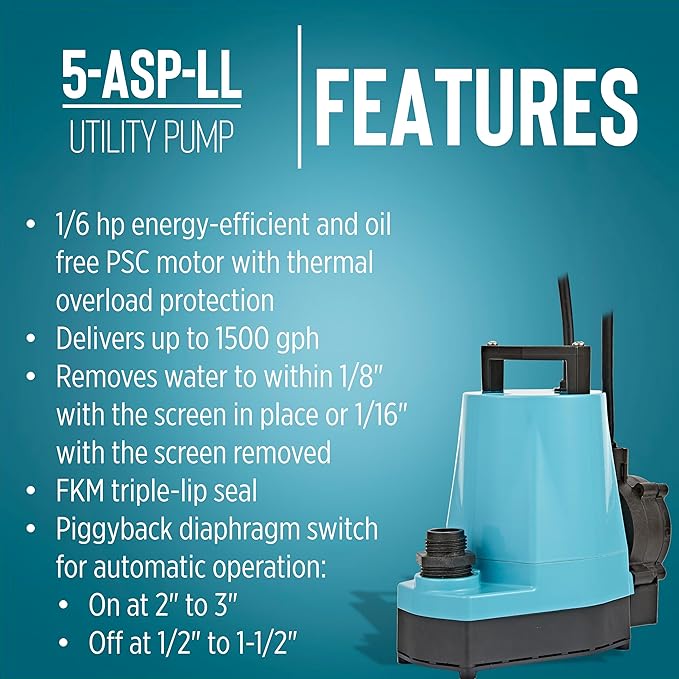

- BUILT TO LAST: epoxy coated die-cast aluminum with a 1/6 HP permanently lubricated, oil-free, energy-efficient PSC motor with overload protection, triple-lip seal, upper and lower ball bearings

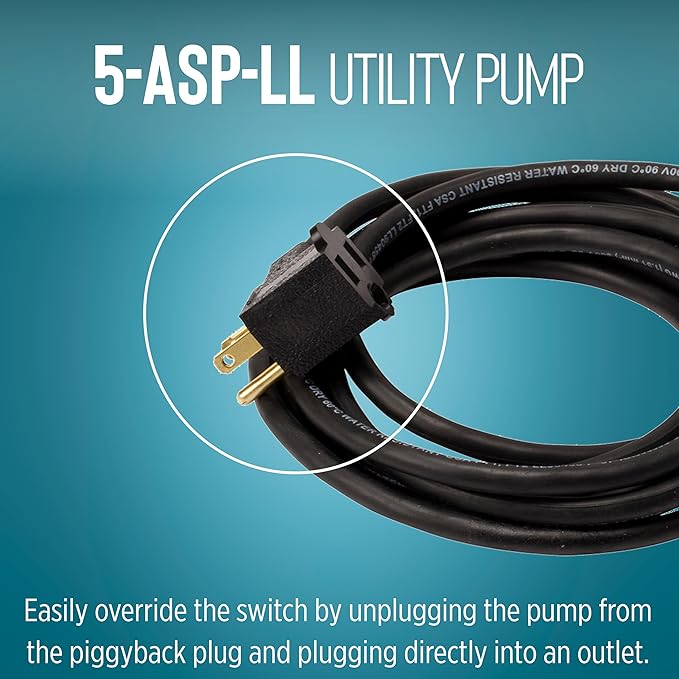

- Portable and compact weighing 8 lbs. with built-in carry handle; piggyback switch allows easy conversion to a manual pump

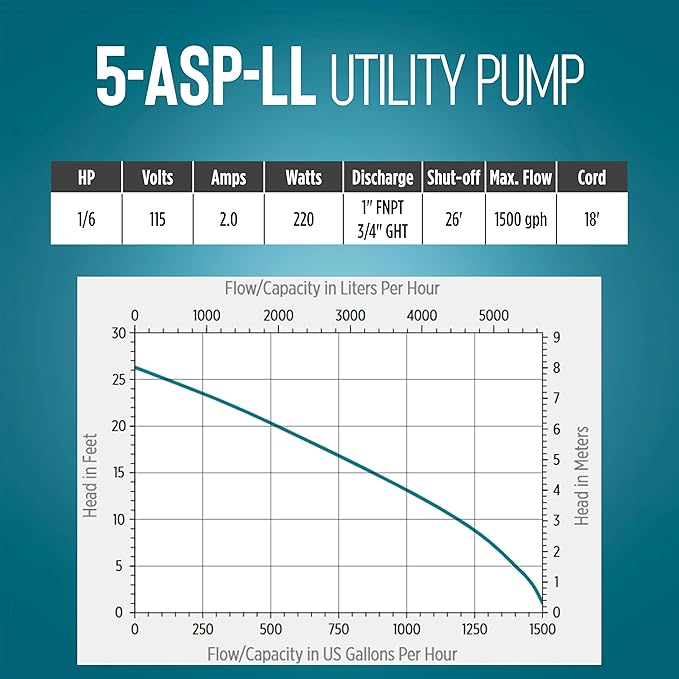

- SPECIFICATIONS: 1/6 HP, 1500 GPH, 115-Volt, 18' cord, 2.0 running Amps, 220 Watts, 26-foot shut-off, 11.43 PSI, automatic operation - on at 2 to 3 inches; off at 0.5 - 1.5 inches
Overview
- Brand : Little Giant
- Color : Blue
- Material : Epoxy Coated Cast Aluminum
- Style : Low Level Automatic, 115V, 18' Cord

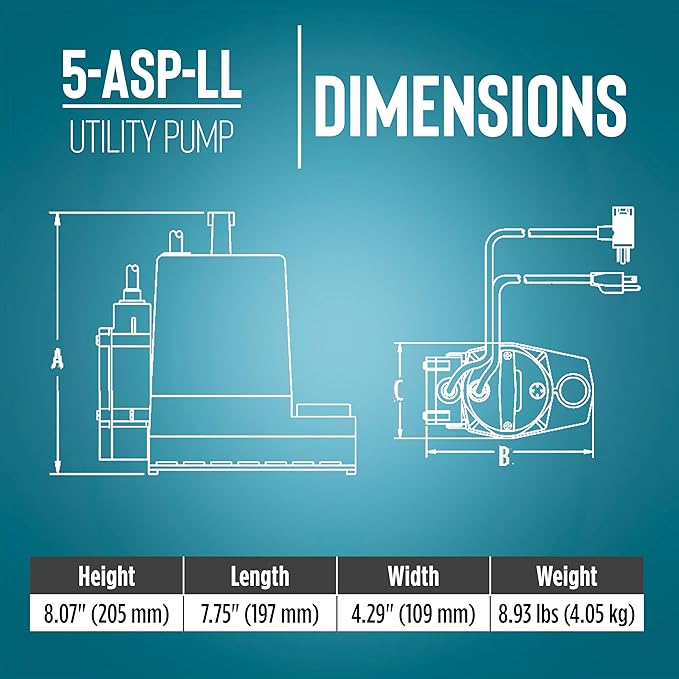

- Product Dimensions : 7.75"L x 4.29"W x 8.07"H
- Power Source : Corded Electric
- Item Weight : 8.93 Pounds
- Maximum Flow Rate : 25 Gallons Per Minute
- Maximum Lifting Height : 26 Feet
- Voltage : 115 Volts
