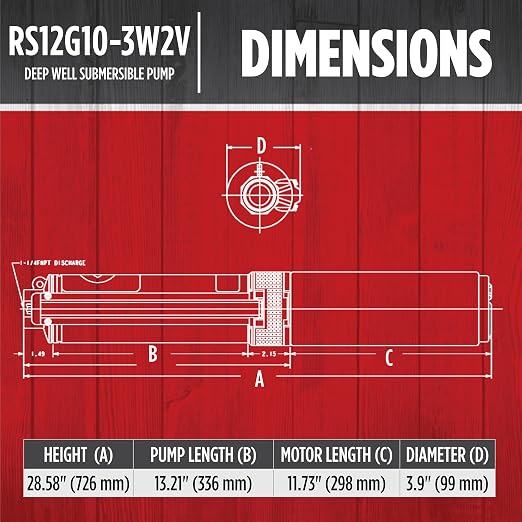

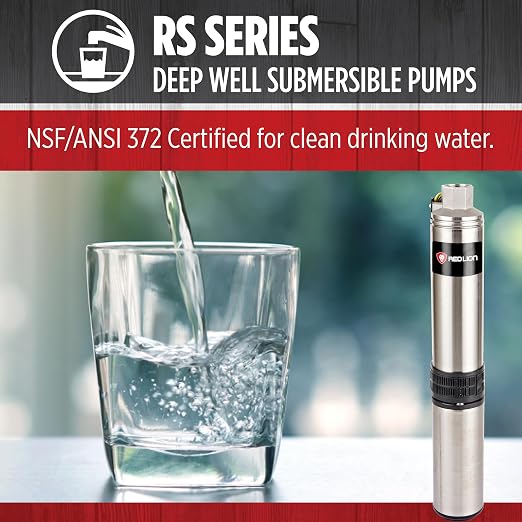

SUBMERSIBLE DEEP WELL PUMP: 3.9-inch diameter well pump fits 4-inch diameter driven wells or larger; NSF/ANSI 372 certified for potable water; premium quality stainless steel discharge

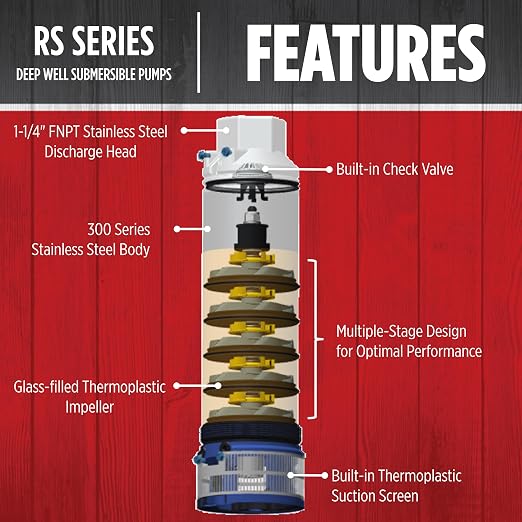

BUILT-INS: built-in check valve help keep pump from rapid cycling and extends the motor life; built-in suction screen helps keep debris out protecting the impellers

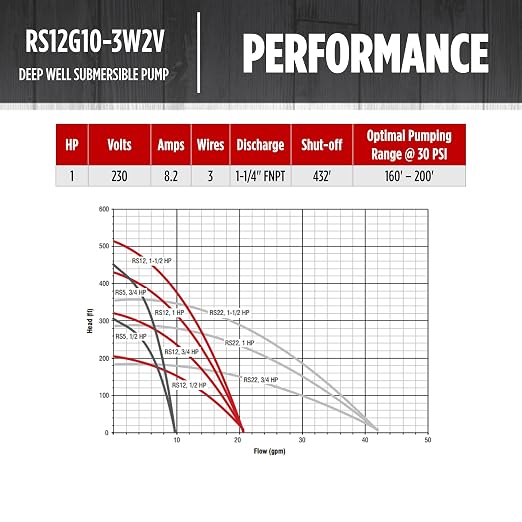

RATED FOR 12 GPM: at 30 PSI it can deliver 12 GPM at a depth of 200-ft.; 432-ft. shut-off

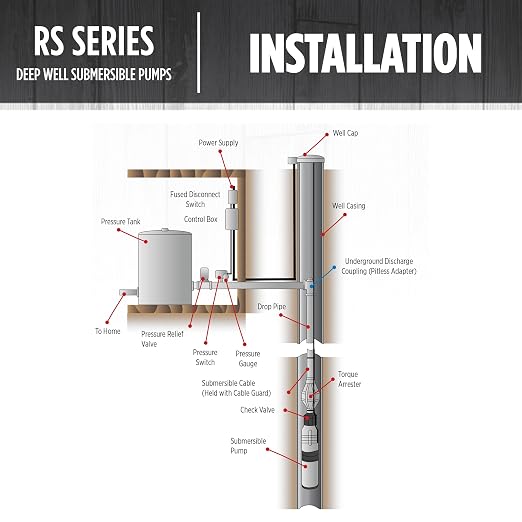

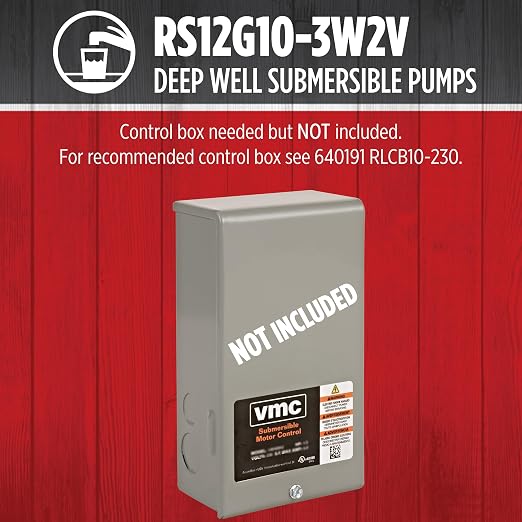

ACCESSORIES NEEDED FOR PROPER INSTALLATION: Red Lion's 1 HP Control Box RLCB10-230 (# 640191); Wire Splice Kit (# 640166)
SPECIFICATIONS: 1 HP, 3-Wire, 230 Volt, 8.2 Amps, 432 Ft. Shut-off; Rated at 12 GPM, 1-1/4-inch FNPT discharge; CSA and UL listed in the USA and Canada; NSF/ANSI 372 certified for safe drinking water
