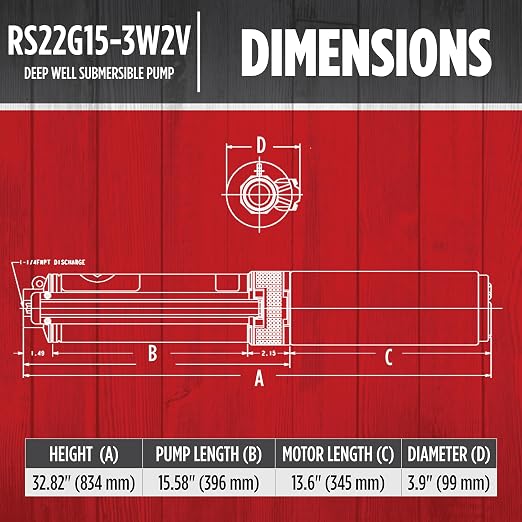

SUBMERSIBLE DEEP WELL PUMP: 3.9-inch diameter well pump fits 4-inch diameter driven wells or larger; NSF/ANSI 372 certified for potable water; premium quality stainless steel discharge

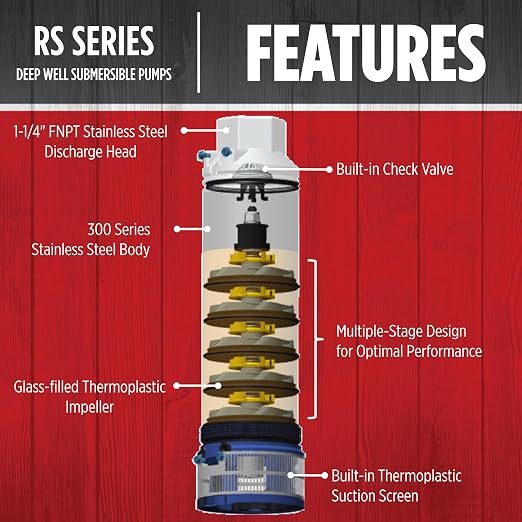

BUILT-INS: built-in check valve help keep pump from rapid cycling and extends the motor life; built-in suction screen helps keep debris out protecting the impellers

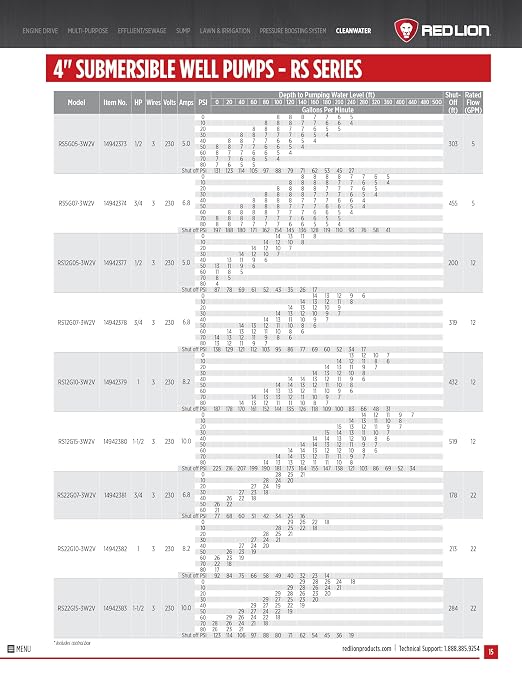

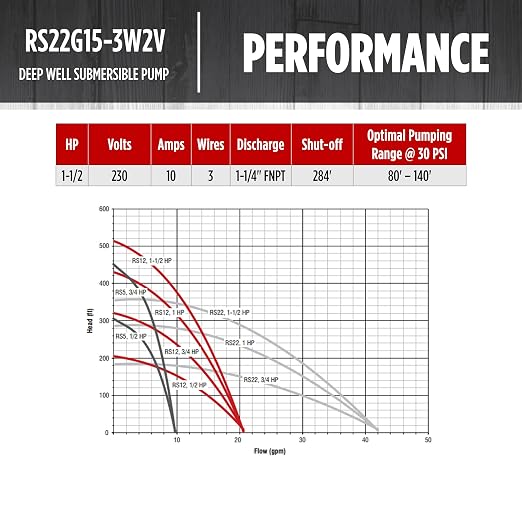

RATED FOR 22 GPM: at 30 PSI it can deliver 23 GPM at a depth of 160-ft; 284-ft. shut-off

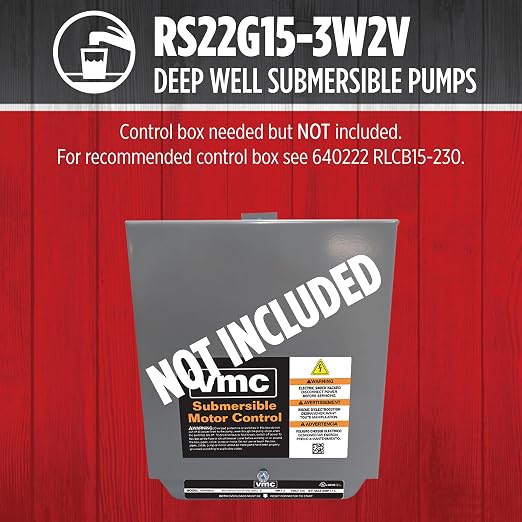

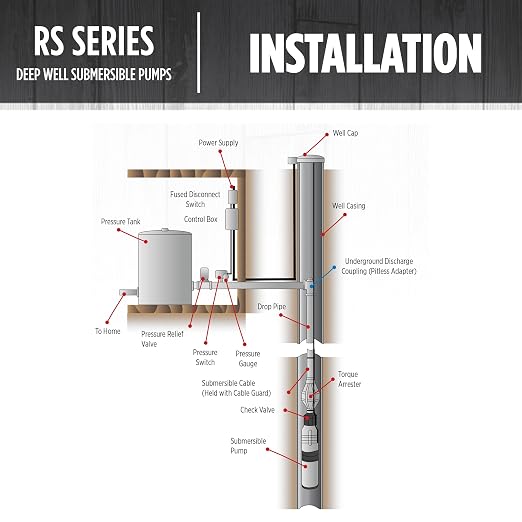

ACCESSORIES NEEDED FOR PROPER INSTALLATION: Red Lion's 1-1/2 HP Control Box RLCB15-230 (# 640222); Wire Splice Kit (# 640166)
SPECIFICATIONS: 1.5 HP, 3-Wire, 230 Volt, 10 Amps, 284 Ft. Shut-off; Rated at 22 GPM, 1-1/4-inch FNPT discharge; CSA and UL listed in the USA and Canada; NSF/ANSI 372 certified for safe drinking water
